VHF Radio Telephone

VH01 is a two-way liferaft phone, this must be boat inspected and must be carriedShip Inspection CCS Certificate.VH01 is emergency back-up, not for daily use.

Both VH01 and VH02 can be supplied with a copy of the operating manual with each set.

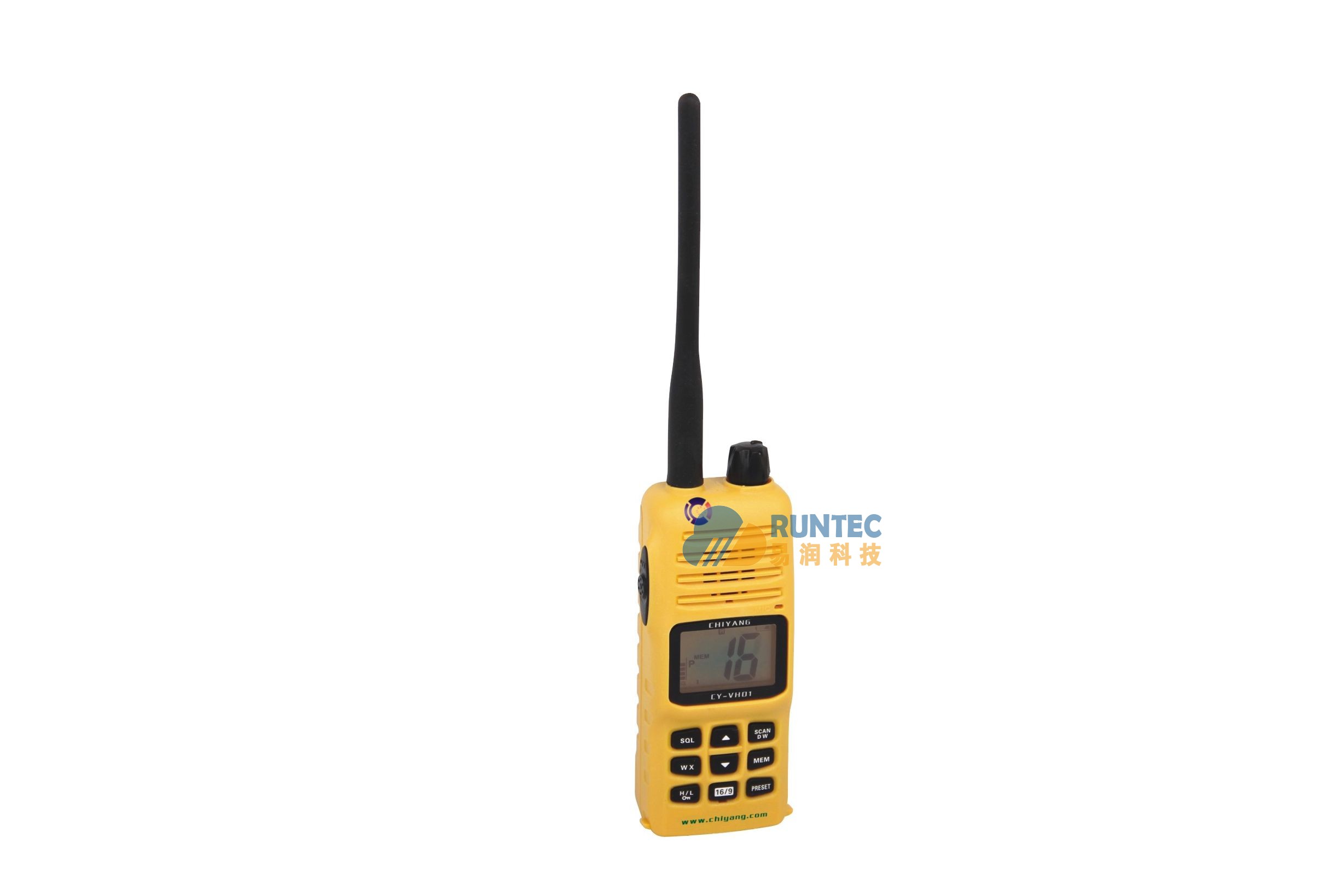

 CY-VH01 two-way VHF radiotelephone is designed and manufactured in accordance with the requirements of international standard IEC 61097-12 and MSC.149(77), which is in full compliance with the relevant requirements of GMDSS and has passed the CCS type approval. It is mainly used as a radio equipment for the communication between the person in distress and the attached rescuers. It can use all the VHF channels assigned to the international maritime mobile service, and when encountering an emergency, it can send a distress signal to other vessels or marine patrols on channel 16, which can also meet the daily communication needs of the ship. Transmitting power reaches 5W, realizing longer distance communication.
This two-way VHF cordless phone has excellent waterproof function and shock resistance, high quality call ability, can well adapt to the harsh environment on board; easy to operate, non-skilled personnel can also operate, most of the functions can be operated with one hand; high performance, high reliability, each two-way VHF cordless phone has gone through rigorous inspection and testing to ensure that the performance and reliability to meet the requirements.

Frequency range: 154-163MHz
Channel spacing: 25kHz (12.5kHz optional)
Operating temperature: -20°C to +55°C
Sensitivity: 2μV for 20 dB SINAD
Neighboring channel power: >70 dB
Blocking: >90 dB
Spurious response rejection: ＞70 dB
Modulation distortion: <5%
Intermodulation immunity: ＞68 dB
RF Output Power: 1W (Lo)/5W (Hi)
Frequency tolerance: <+1.5kHz
Dimensions (W x H x D): 56 x 133 x 27.5 mm (excluding antenna and buckle.)
Weight: 280 g (Including battery, buckle and antenna.)
