Helicopter Simulator

Description

Helicopter Simulator

Requirements for Onshore Personnel of Helicopter Simulator Trainers

Simulator shore operators must undergo training, primarily covering simulator operation, crane operation, air compressor operation, and emergency power supply operation. Each training device must be operated by designated personnel. A minimum 2-meter safety zone must be established and clearly marked on the ground with brightly colored paint. At all times, no personnel or obstructions shall be present within the safety zone. All operations and inspections must strictly comply with the requirements specified in each equipment manual.

Helicopter SimulatorTraining Objectives

1. Helicopter Overview and Onboard Safety Equipment
2. Methods for Helicopter Maritime Rescue
3. Precautions for Passengers Before Boarding, During Flight, and After Disembarking from the Helicopter
4. Helicopter Emergency Landing and Underwater Escape

1)Theoretical Knowledge

1. Understanding the Application of Helicopters in Offshore Facility Production Operations
2. Familiar with helicopter structural features and onboard safety equipment
3. Familiar with equipment for helicopter maritime rescue operations

4. Master the correct actions for personnel in distress during helicopter maritime rescue operations.
5. Mastering the methods and precautions for boarding helicopters
6. Master helicopter underwater escape procedures and conduct student discussions and case studies.

II)Practical Skills

1. Apnea Training and Apnea Diving
2. Emergency Landing Evacuation Drill
3. Emergency Landing on Water Survival Training
4. Underwater Escape Training Following Helicopter Capsizing
5. Hoisted from the water into the simulated helicopter cabin

(3) Evaluation Criteria

1. Board the helicopter according to procedures and ensure compliance with safety requirements during the flight.

2. Safe evacuation during emergency landings, water landings, and helicopter rollovers

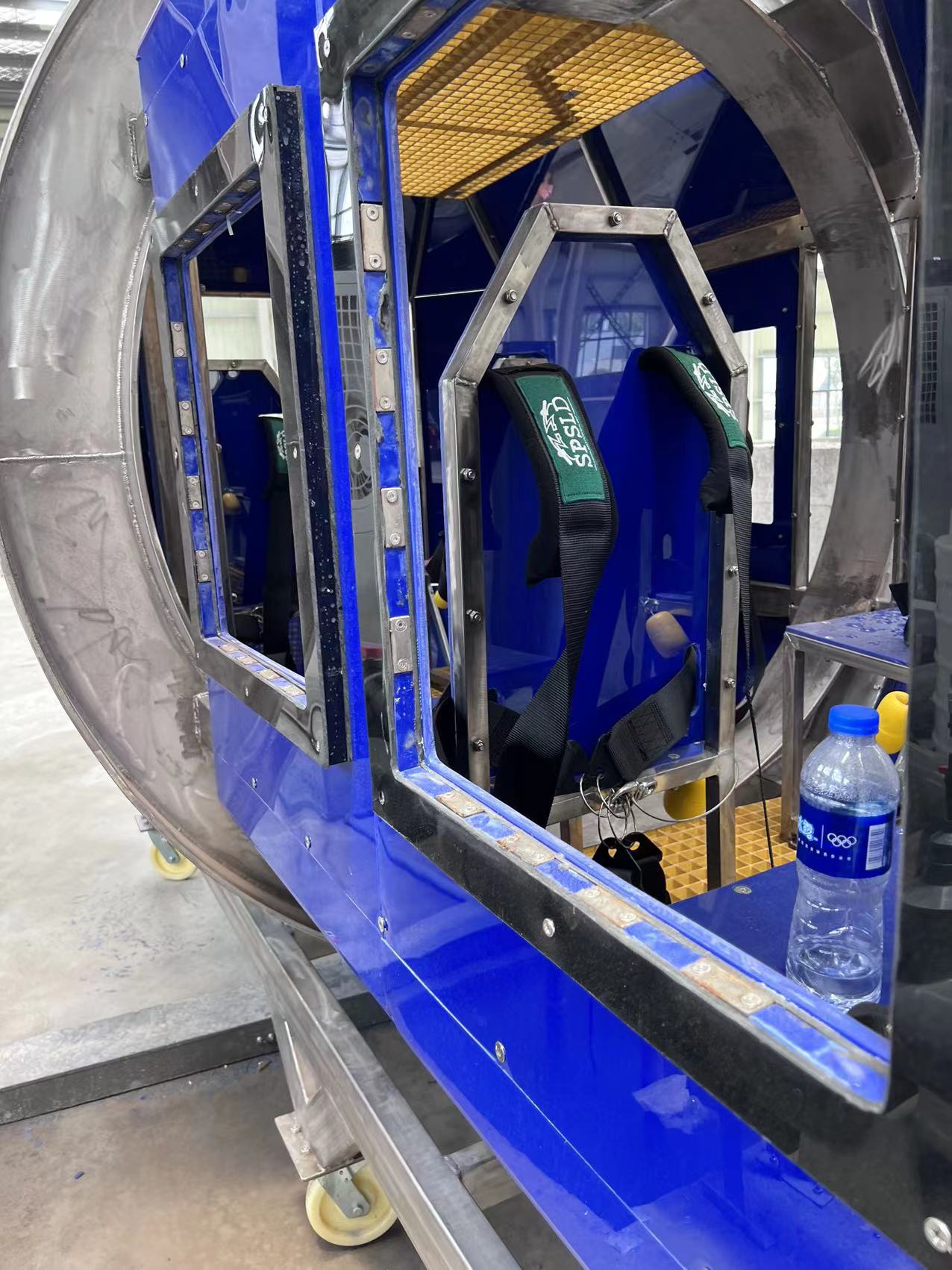

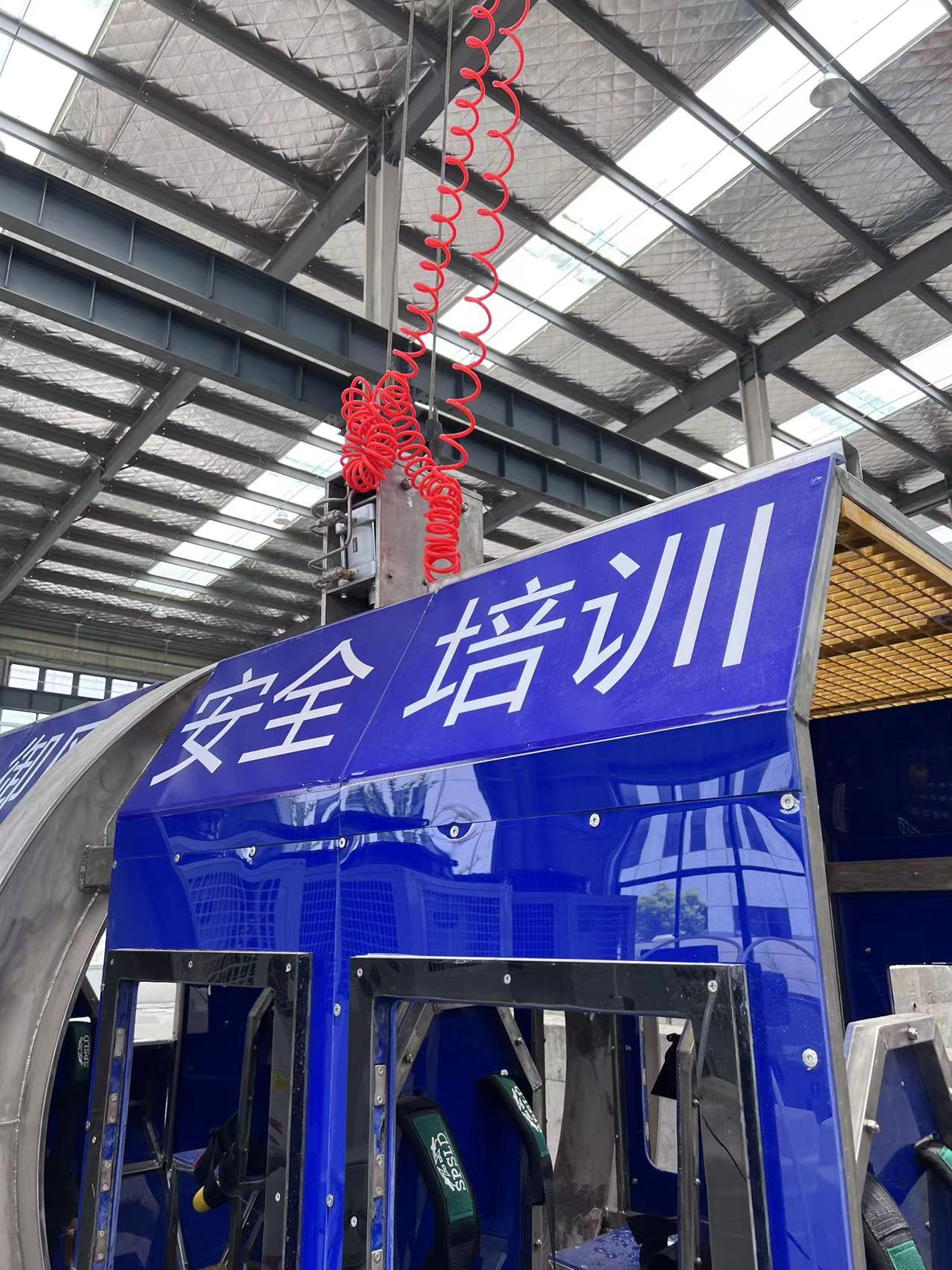

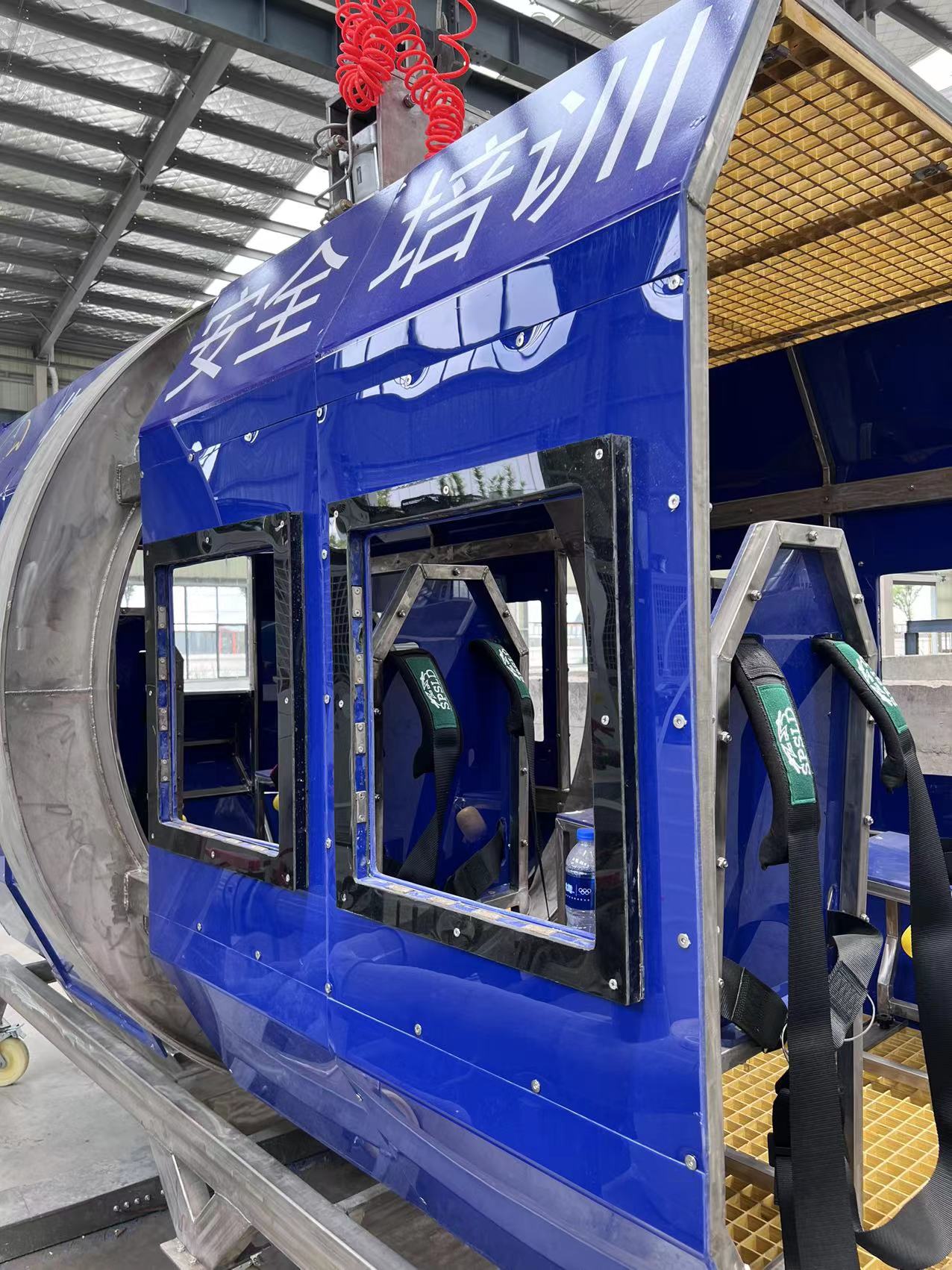

Technical Features and Services of the Helicopter Underwater Escape Training Simulator Include:：

1. Stainless steel and synthetic material corrosion-resistant structures;

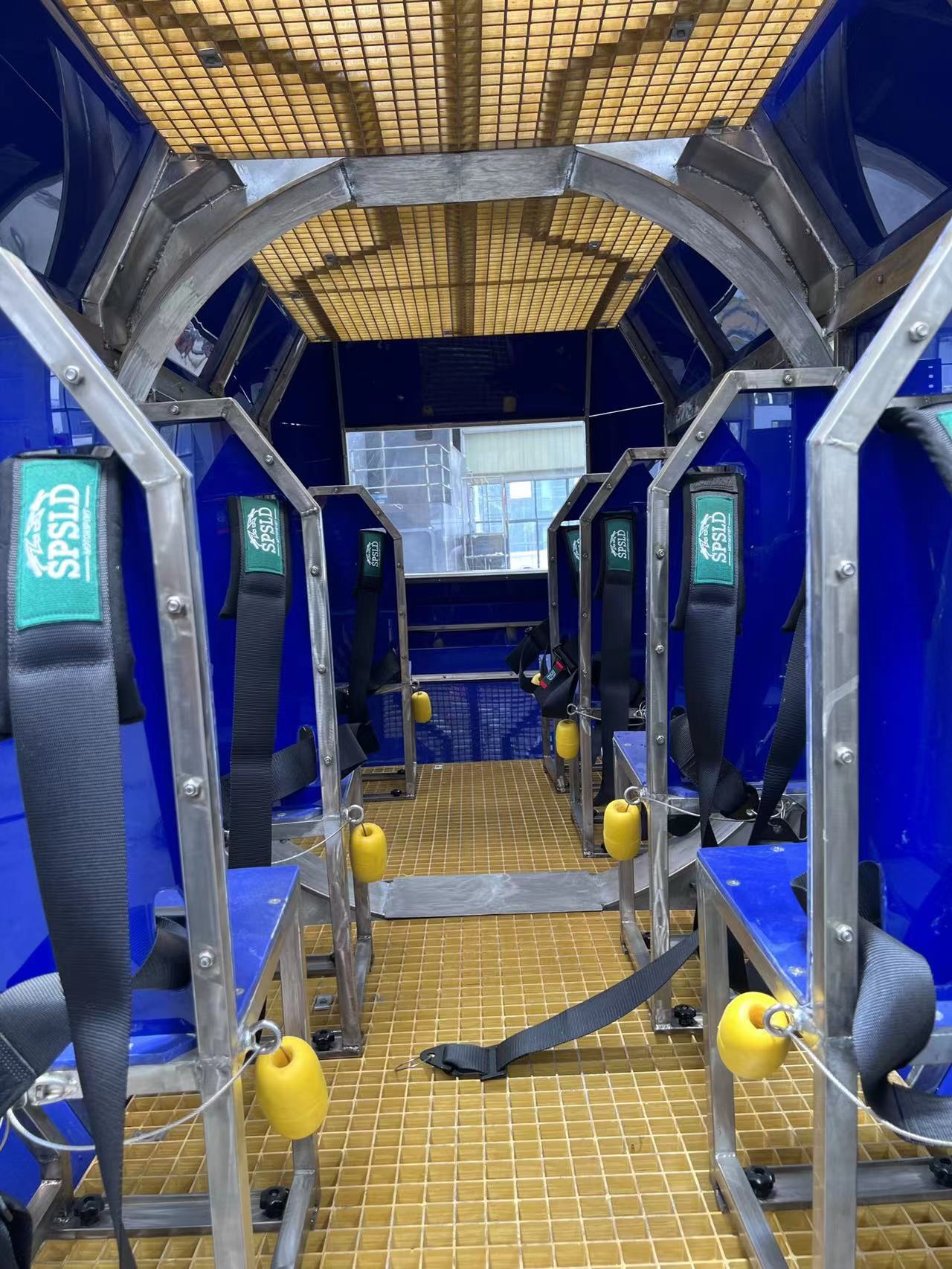

2. 7 high-back seats for helicopter simulators;

3.7-point lap and shoulder safety belts with emergency release function

4.7 helicopter simulation windows with emergency opening capability;

5.1 Helicopter access door with manual opening capability;

6.1 Simulator Trailer;

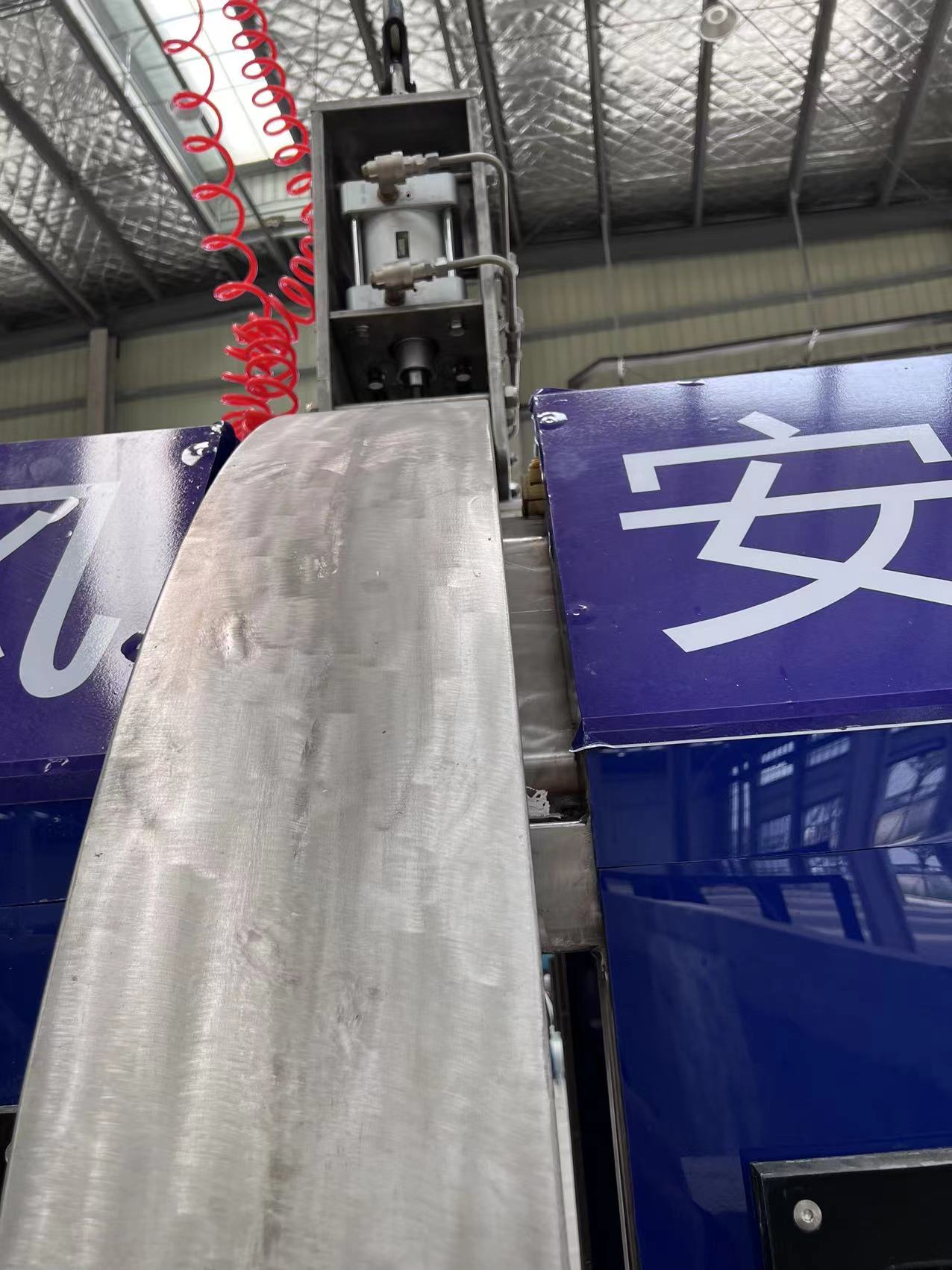

7. The simulator features underwater 180-degree rotation capability, with controllable stopping at any angle during rotation:

8. The simulator features lifting and lowering functions, with both local and remote control modes available.

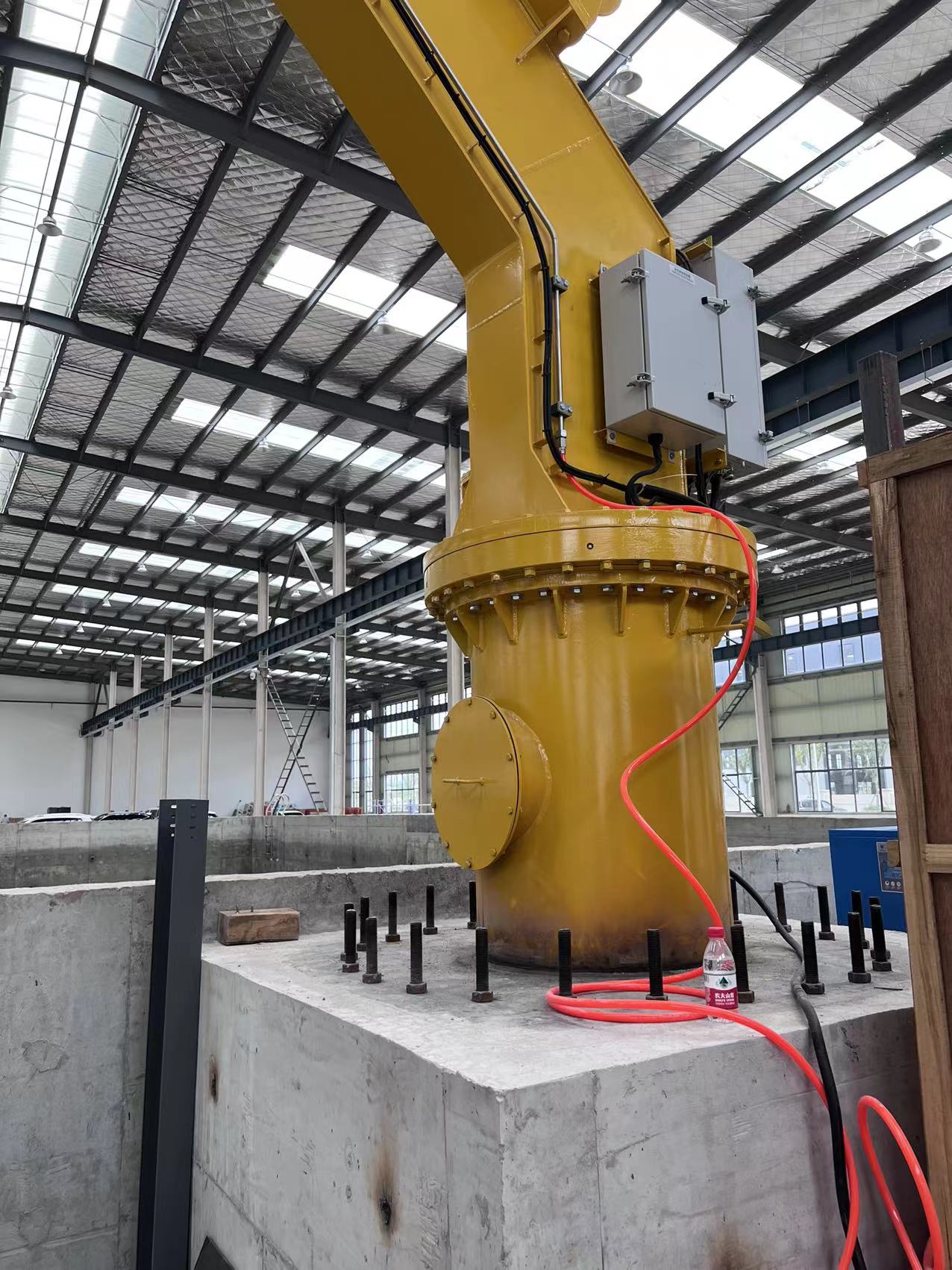

9.1 Single-girder, single-girder slewing crane, with core components such as motors sourced from top-tier brands.

10. 1 air compressor, top-tier brand:
11. 1 set of emergency power supply, top-tier brand;

12.1 Inspection certificates issued by the China Classification Society;

13. 1 set of as-built documentation, including operation, maintenance, and servicing manuals;
14. The above prices are inclusive of taxes, shipping, insurance, and installation and commissioning services.
15. The product comes with a one-year warranty.

Total Power: 15 kW

Simulator dimensions: 3.7 meters × 2.6 meters × 2.4 meters

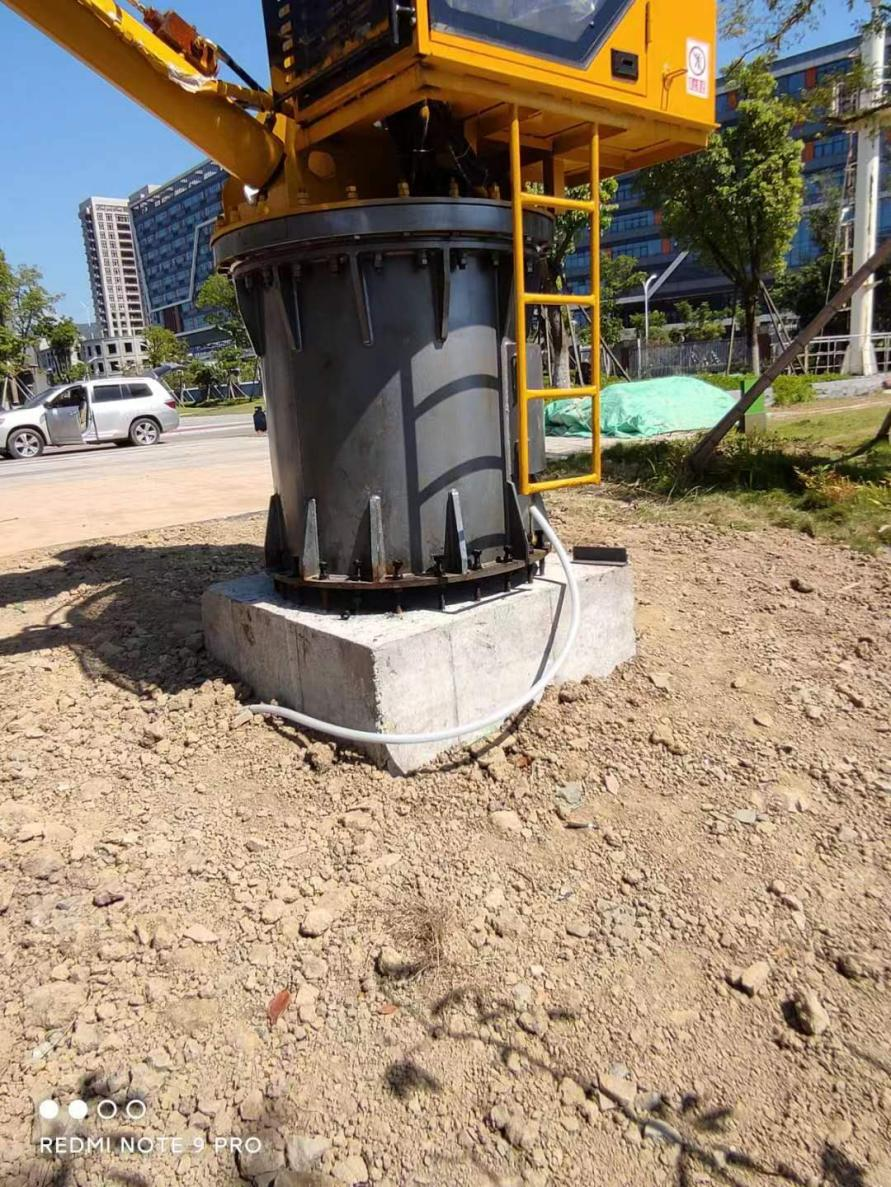

Crane base dimensions: 1.5 meters × 1.5 meters

Manufacturer: Wuhan Yirun Technology Co.
